Live Mode

Live Mode re-runs the simulation automatically every time the geometry or sim settings change. It turns RayRF into a tight iteration loop: drag a patch edge, watch the resonance shift, drag again.

Turning it on

Click the + LIVE button at the right end of the title bar. The button highlights when active, the title bar shows a + LIVE badge, and the status row reads Live Simulation Mode, edits trigger automatic re-runs. An FPS counter and a last-run-time readout appear next to the badge. Live Mode persists across tab switches but resets on an app restart.

The workflow

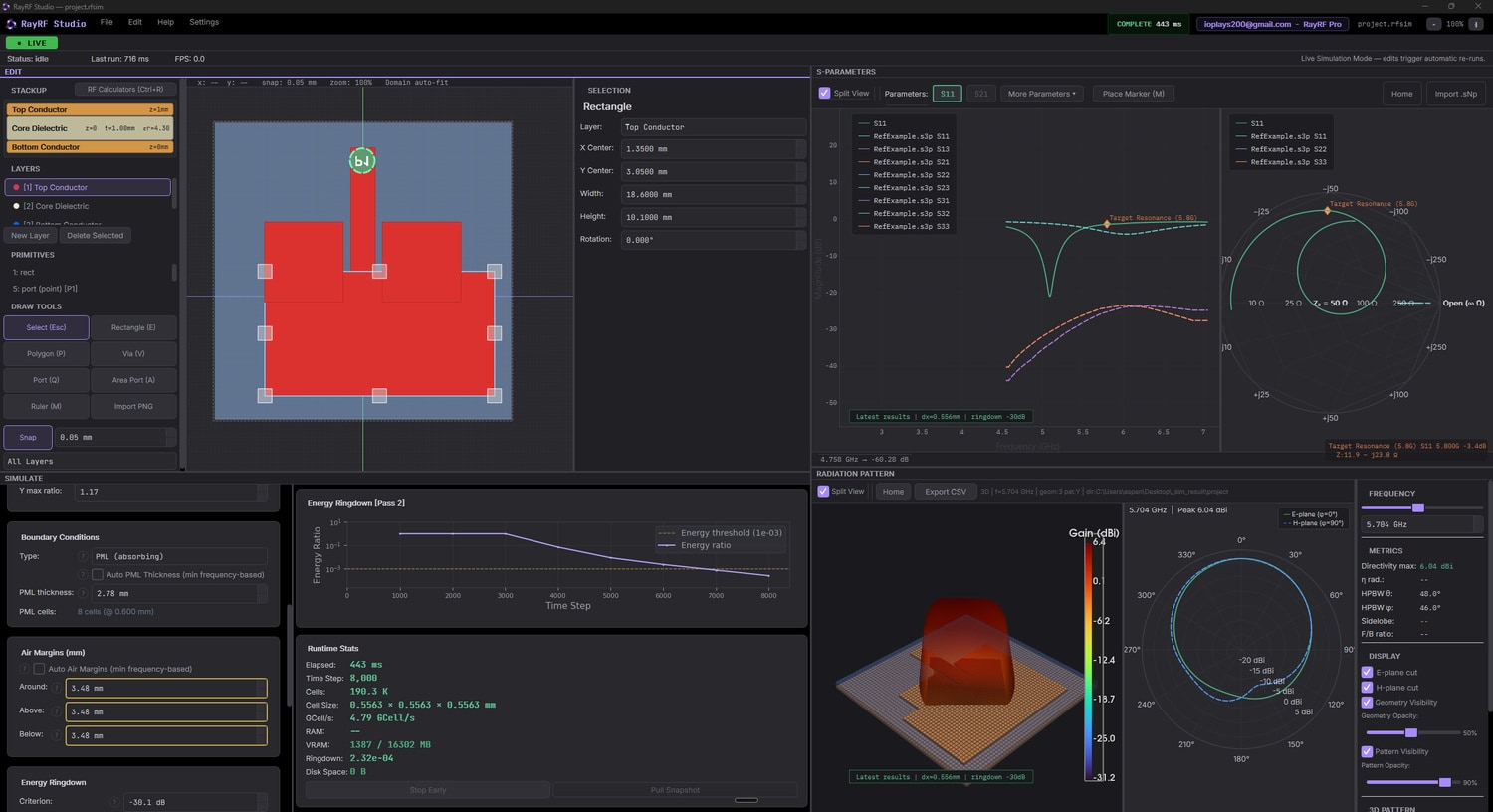

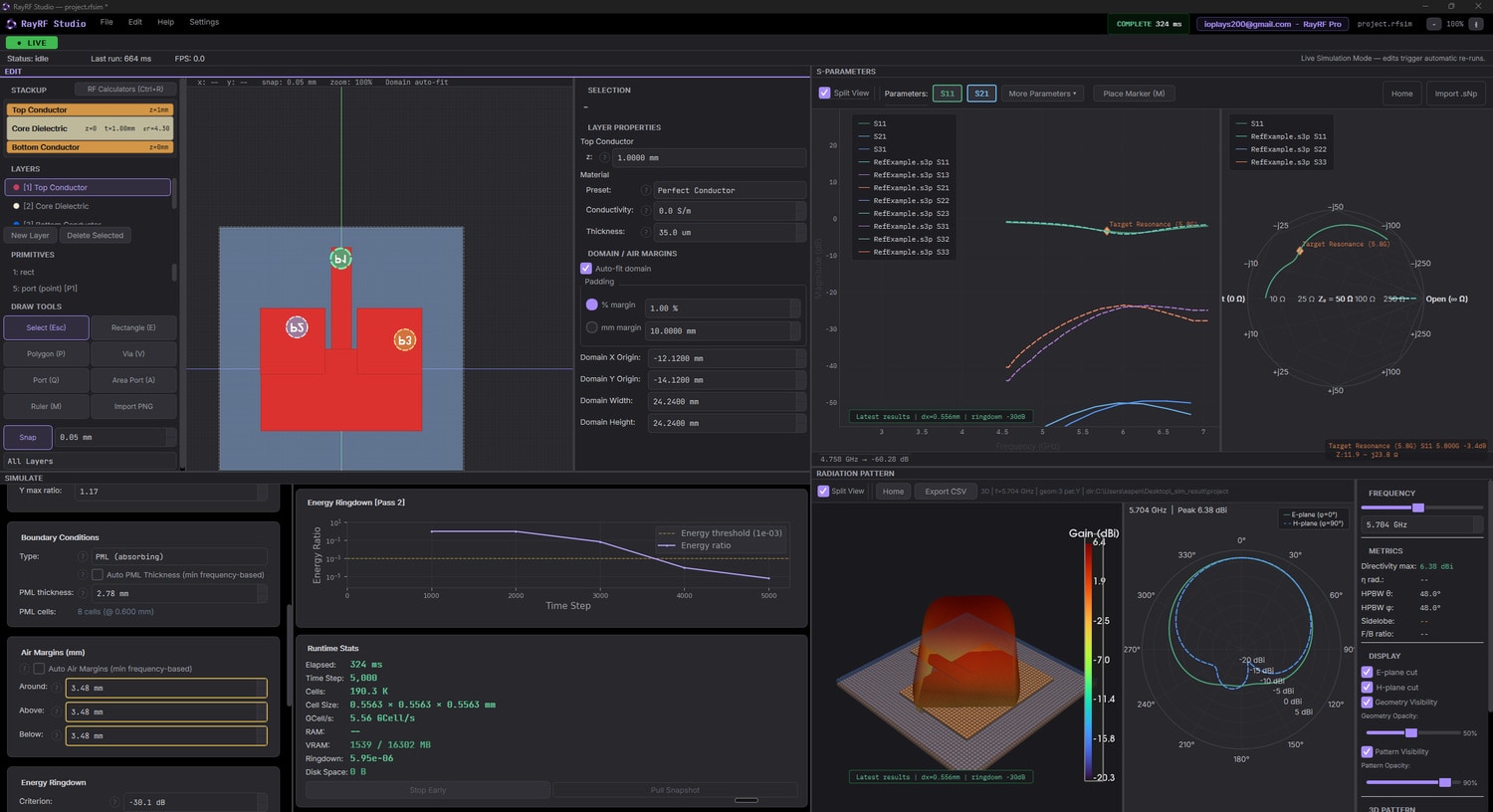

The Live Mode layout is split: editor on the left, Simulate panel in the middle, results on the right. As you drag a primitive or edit a numeric field, the in-flight run cancels and the next run picks up the new state. The S-Parameters and Radiation Pattern panes update on each finished run, so you can watch the resonance move in near real time.
